Mahsulot tavsifi
 Akrel o'lchash oqimi transformatorining asosiy oqim o'lchash diapazoni 5-3000A, aniqlik darajasi 0,2 yoki 0,5 sinf, sanoat o'lchoviga bag'ishlangan yuqori oqim qiymatini 5A yoki 1 A ga aylantiradi. , va hisob-kitob elektr energiyasi hisoblagichi bilan birgalikda ishlatilishi mumkin va o'lchov aniq va ishonchli. |
Bizning joriy o'lchash transformatorimiz aylantiruvchi dizayn, chiroyli ko'rinish va qulay simlardan foydalangan. Tanlangan shaffof polikarbonat qopqog'ini aylantiruvchi material ikkilamchi simning simlarini aniq ko'rishi mumkin. Dumaloq kombinatsiyalangan teshik turi simi va avtobus panelini sozlash komponentlari orqali o'tish uchun AC oqim signali sifatida ishlatilishi mumkin va odatda elektr o'lchash asboblari bilan birgalikda ishlatiladi.

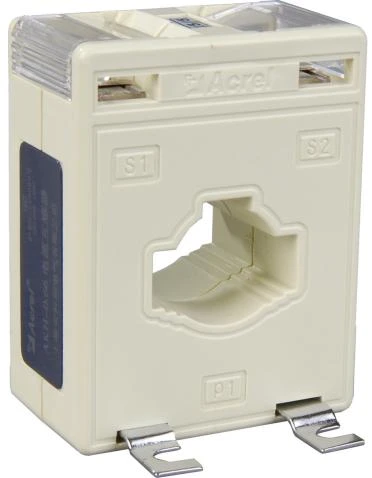

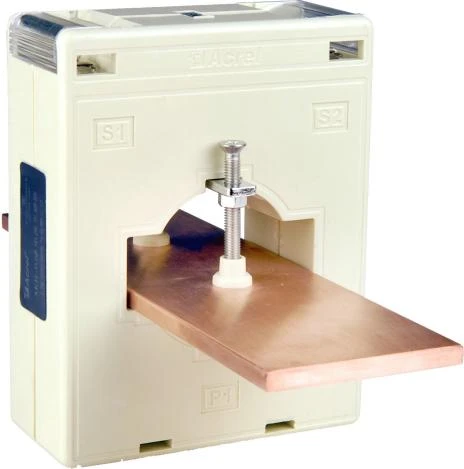

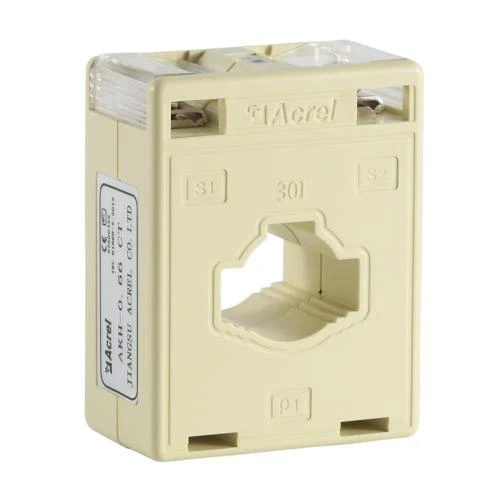

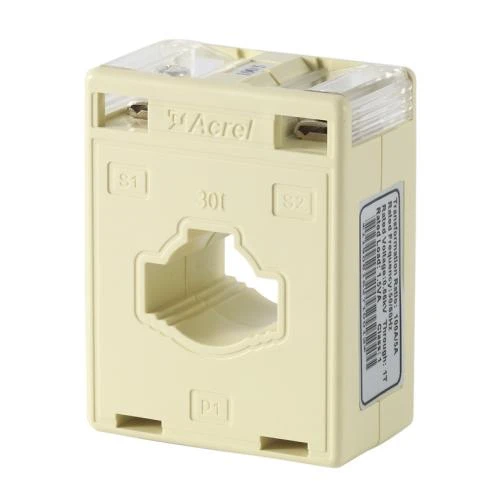

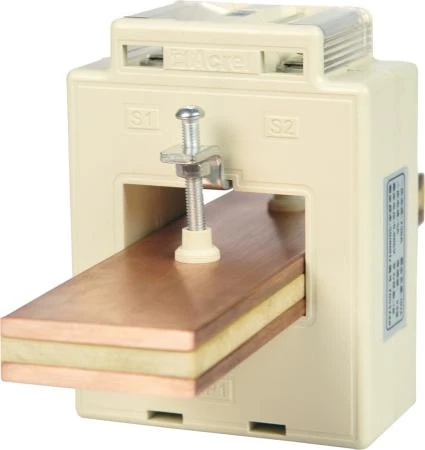

Tashqi ko'rinish
 |  |
Parametrlar
Nisbat | Class Burden (VA/Ω) | Burilishlar | Shina turi (mm)/QTY | Dia.(mm) | |||
0.2 | 0.5 | 1 | |||||
30I | 15/5(1) | 1.5 | 5 | / | Ф22 | ||
20/5(1) | 1.5 | 4 | |||||
25-30/5(1) | 1.5 | 3 | |||||
40-60/5(1) | 1.5 | 2 | |||||
75-100/5(1) | 1.5 | 1 | 3010/1 | ||||
150-200/5(1) | 2.5 | 1 | |||||
250/5(1) | 3.75 | 1 | |||||
300-450/5(1) | 5 | 1 | |||||
500/5(1) | 10 | 1 | |||||
600/5 | 10 | 1 | |||||
40I | 10/5(1) | 1.5 | 10 | / | Ф30 | ||
15/5(1) | 1.5 | 8 | |||||
20/5(1) | 1.5 | 5 | |||||
25-30/5(1) | 1.5 | 4 | |||||
40/5(1) | 1.5 | 3 | |||||
50-75/5(1) | 1.5 | 2 | |||||
100/5(1) | 1.5 | 1 | 4010/1 | ||||
150/5(1) | 2.5 | 1 | |||||
200/5(1) | 2.5 | 1 | |||||
250/5(1) | 3.75 | 1 | |||||
300-450/5(1) | 5 | 1 | |||||
500-800/5(1) | 10 | 1 | |||||
1000/5(1) | 10 | 1 | |||||
60I | 150/5(1) | 2.5 | 1 | 6010/1 | Ф44 | ||
200-250/5(1) | 2.5 | 1 | |||||
300-450/5(1) | 5 | 1 | |||||
500-800/5(1) | 10 | 1 | |||||
1000-1250/5(1) | 10 | 1 | |||||
1500-2000/5(1) | 20 | 1 | |||||
2500/5(1) | 30 | 1 | |||||
80I | 150/5(1) | 2.5 | 1 | 8010/1 | Ф50 | ||
200-250/5(1) | 2.5 | 1 | |||||
300-400/5(1) | 5 | 1 | |||||
500-800/5(1) | 10 | 1 | |||||
1000-1250/5(1) | 10 | 1 | |||||
1500-2000/5(1) | 20 | 1 | |||||
2500-3000/5(1) | 30 | 1 | |||||
O'lchamlari
Hajmi (mm) Rejim | O'lchamlari | Teshik hajmi | O'rnatish hajmi | |||||
W | H | D | a | e | Φ | M | N | |
30 I | 60 | 78 | 36 | 31 | 11 | 22 | 34 | 57.5 |
40 I | 75 | 95 | 45 | 42 | 11 | 31 | 40 | 57.5 |
60 I | 102 | 130 | 45 | 61.5 | 21 | 45 | 42 | 57.5 |
80 I | 118 | 140 | 45 | 82 | 11 | 52 | 60 | 57.5 |
Ushbu Idoralar{0}}sertifikatlangan oqim transformatorlari KT teshigidan bitta kabel, bir nechta kabel yoki bitta shina o'tishiga imkon beradi.
Atrof-muhitdan foydalaning
● Rated working voltage AC {{0}}.66kV (equivalent to AC0.69kV, GB156-2003)
● Rated frequency 50-60Hz
● Ambient temperature -30 degree 70 degree
● Altitude Less than or equal to 3000m
● Power frequency withstand voltage 3000V/1min 50Hz
● Used in places where there is no direct rain or snow, no serious pollution and severe vibration
 |  |  |

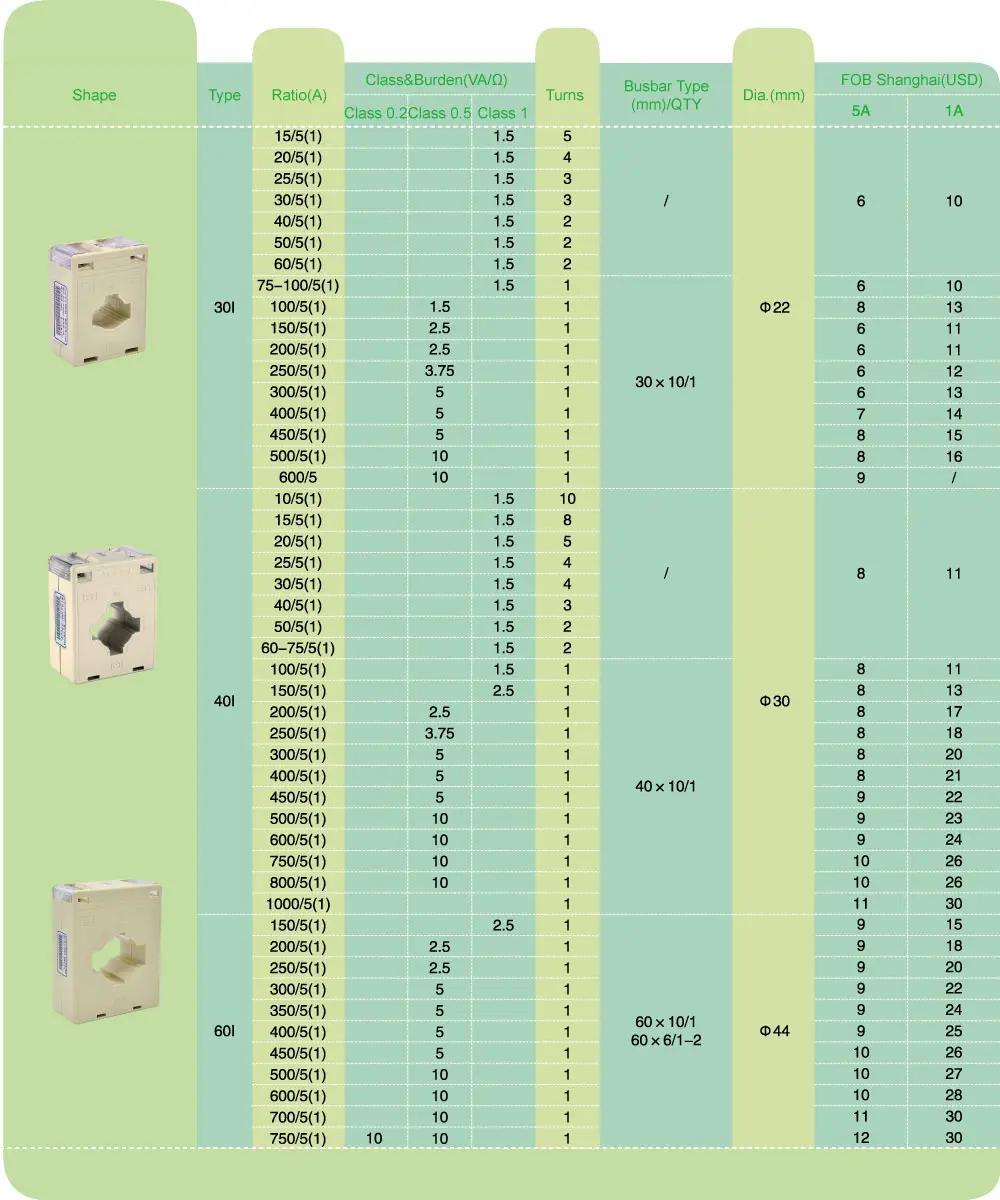

Iqtibos
