Ishlab chiqarish tavsifi

Hall oqimi sensorlari asosan AC, DC, impuls va boshqa murakkab signallarni ajratish va aylantirish uchun ishlatiladi. Joriy signallarni signal nazorati Hall effektlari nazariyasiga ko'ra aylantirilgandan so'ng, ularni AD, DSP, PLC, ikkilamchi asboblar va boshqa qurilmalar to'g'ridan-to'g'ri olish mumkin.

Hall oqimi sensorlari joriy monitoring, batareyani qo'llash, inverter, quyosh energiyasini boshqarish, to'g'ridan-to'g'ri oqim shkafi, DC vosita haydovchisi, elektrokaplama, payvandlash, chastota konvertori, UPS servo boshqaruv tizimlarida olish va qayta aloqa qilish uchun keng qo'llaniladi. Ular tezkor javob, keng o'lchov diapazoni, yuqori aniqlik, kuchli ortiqcha yuk ko'tarish qobiliyati, yaxshi chiziqlilik va - shovqinga qarshi mukammal ishlashga ega.

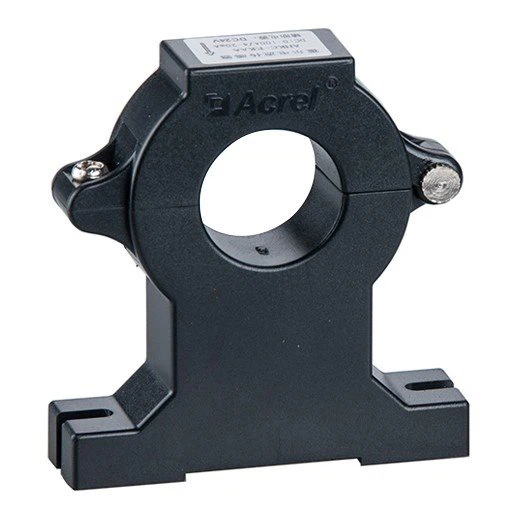

Tashqi ko'rinish

Parametrlar

Texnik parametrlar			Ma'lumotlar
			Split/yopiq ochiq - halqa	Zal (haqiqiy RMS)
Chiqish	Nominal qiymat		Voltage: ±5V/±4V	Oqim: 4 - 20mA
	Nolinchi ofset kuchlanish (joriy)		Voltage: ±20mV	Current:±0.05mA
	Ofset kuchlanish (joriy) drift		Voltage: {{0}}±1.0mV/ degree	Current:±0.04mA/ degree
	Chiziqlilik		≤0.2%FS
Quvvat kuchlanishi			DC±15V	DC 24V
Tarmoqli kengligi			0 - 20 kHz
Javob vaqti			≤5biz	≤1ms
Dielektrik quvvat			Quvvat chastotasida kirish/chiqish va quvvat manbai o'rtasida ruxsat etilgan 2500VAC
Aniqlik klassi			1.0
Atrof-muhit sharoitlari		Harorat	Ishlash harorati: - 25 daraja - + 70 daraja; saqlash harorati: - 40 daraja - + 85 daraja
		Namlik	≤95%RH, shudring yo'q, agressiv gaz yo'q
		Balandlik	≤3500m

Hajmi


1-rasm	2-rasm

Hajmi spetsifikatsiyasi	Kontur hajmi			Hajmi orqali			O'rnatish hajmi		Rasm
Hajmi spetsifikatsiyasi	W	H	D	a	e	Φ	M	N	Rasm
AHKC - EKA	60	64	16	/	/	20	47	/	1-rasm
AHKC - EKAA	60	64	16	/	/	20	47	/	1-rasm
AHKC - EKDA	60	64	16	/	/	20	47	/	1-rasm
AHKC - EKB	100	102	24	/	/	40	80	/	1-rasm
AHKC - EKBA	100	102	24	/	/	40	80	/	1-rasm
AHKC - EKBDA	100	102	24	/	/	40	80	/	1-rasm
AHKC - K	127	63	25	64	16	/	/	30	2-rasm
AHKC - KAA	127	63	25	64	16	/	/	30	2-rasm
AHKC - KDA	127	63	25	64	16	/	/	30	2-rasm
AHKC - H	149	79	25	82	32	/	/	46	2-rasm
AHKC - KA	176	95.5	29	104	36	/	/	60	2-rasm
AHKC - HB	204	111.5	29	132	52	/	/	48 × 2	2-rasm

Joriy nisbat

Spetsifikatsiya	Nominal oqim	Quvvatlantirish manbai	Nominal chiqish	Diafragmani o'lchash (mm)	Aniqlik darajasi
AHKC - EKA	0～(20 - 500)A	±15V	5V	φ 20	1
AHKC - EKAA	DC 0～(50 - 500)A	12V/24V	4～20mA	φ 20	1
AHKC - EKDA	AC 0～(50 - 500)A	12V/24V	4～20mA	φ 20	1
AHKC - EKB	0～(200 - 1000)A	±15V	5V	φ 40	1
AHKC - EKBA	DC 0～(200 - 1000)A	12V/24V	4～20mA	φ 40	1

AHKC - EKBDA	AC 0～(200～ 1000)A	12V/24V	4～20mA	φ 40	1
AHKC - K	0～(400 - 2000)A	±15V	5V	64×16	1
AHKC - KAA	DC 0～(400 - 2000)A	12V/24V	4～20mA	64×16	1
AHKC - KDA	AC 0～(400 - 2000)A	12V/24V	4～20mA	64×16	1
AHKC - H	0～(500 - 3000)A	±15V	5V	82×32	1
AHKC - KA	0～(500 - 5000)A	±15V	5V	104×36	1
AHKC - HB	0～(2000 - 20000)A	±15V	5V	132×52	1

Eslatma: Belgilanmagan nominal oqim AC va shahar kirish oqimini o'lchash mumkinligini ko'rsatadi, buyurtma berishda ko'rsating.

Yopiq zaldagi oqim sensori

1-rasm

2-rasm

Hajmi spetsifikatsiyasi	Kontur hajmi (mm)			O'lchami (mm)			O'rnatish hajmi (mm)		Rasm
Hajmi spetsifikatsiyasi	W	H	D	a	e	Φ	M	N	Rasm
AHKC - E	53	72	16	/	/	21	47	/	1-rasm
AHKC - LT	90	73.5	25	/	/	32.5	74.5	71	1-rasm
AHKC - BS	43	32.5	19	20.5	10.5	/	/	/	2-rasm
AHKC - BSA	43	32.5	19	20.5	10.5	/	/	/	2-rasm
AHKC - F	74	57	22	43	13	/	/	22	2-rasm
AHKC - FA	94	60.5	26.5	52	15	/	83	28	2-rasm
AHKC - Shlyapa	94	76.5	24	52.5	32	/	83	28	2-rasm

Joriy nisbat

Spetsifikatsiya	Nominal oqim	Quvvatlantirish manbai	Nominal chiqish	Diafragmani o'lchash (mm)	Aniqlik
AHKC - E	0～(20 - 500)A	±15V	5V	φ 20	1
AHKC - LT	0～(100 - 800)A	±15V	5V	φ 32.5	1
AHKC - BS	0～(20 - 500)A	±15V	5V	20.5*10.5	1
AHKC - BSA	DC 0～(50 - 500)A	12V/15V/24 V	4～20mA	20.5*10.5	1
AHKC - F	0～(200 - 1000)A	±15V	5V	43*13	1
AHKC - FA	0～(200 - 1500)A	±15V	5V	52*15	1
AHKC - Shlyapa	0～(400 - 2000)A	±15V	5V	52*32	1
