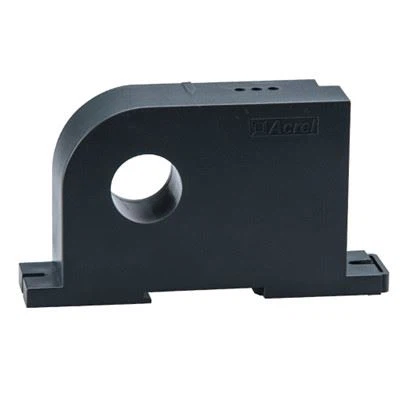

4-20MA oqim o'tkazgich

BA Analog oqim sensori / oqim o'zgartirgichi elektr tarmog'idagi AC oqimini real vaqtda o'lchash uchun elektromagnit induksiya printsipini qo'llaydi va uni izolyatsiya qilish va standart shahar signal chiqishiga aylantirish uchun doimiy oqim va chiziqli kompensatsiya texnologiyasidan foydalanadi. PLC uchun sanoat avtomatizatsiyasida eng ko'p qo'llaniladi.

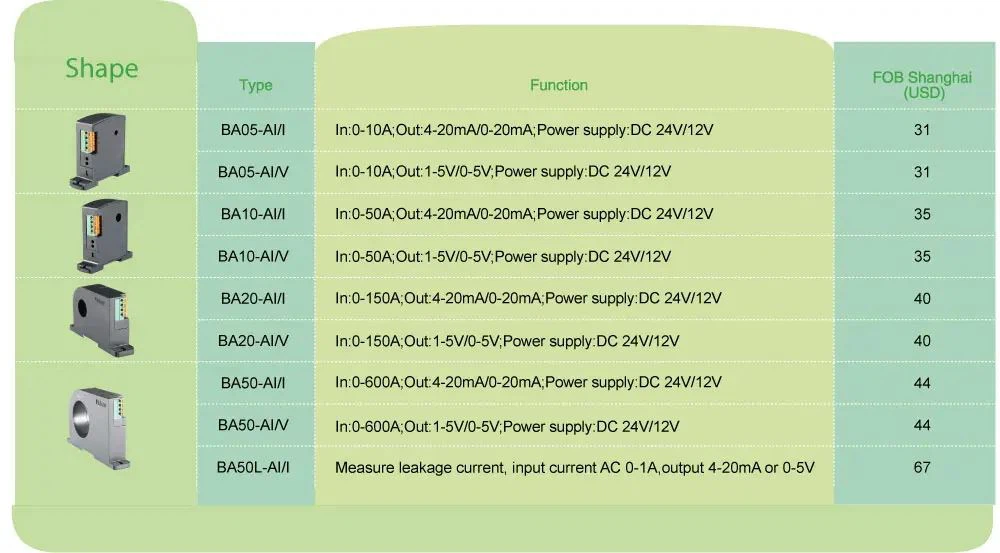

		BA05-AI/I(V)	BA10-AI/I(V)	BA20-AI/I(V)	BA50-AI/I(V)	BA50L-AI/I(V)
Yordamchi quvvat	DC 12V	DC 12V DC 24V	DC 12V DC 24V	DC 12V DC 24V	DC 12V DC 24V	DC 12V DC 24V
	DC 24V
Iste'mol		1 Vt dan kam yoki unga teng	1 Vt dan kam yoki unga teng	1 Vt dan kam yoki unga teng	1 Vt dan kam yoki unga teng	1 Vt dan kam yoki unga teng

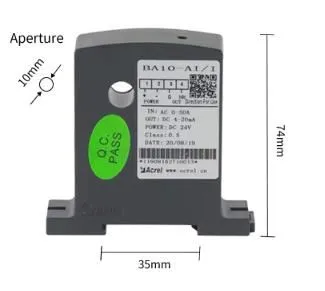

Teshik-oʻlchami		φ5mm	φ10mm	φ20mm	φ50mm	φ50mm
Kiritish	Hozirgi	AC {0}}(0,510)A	AC 0(850)A	AC 0(40200)A	AC 0(60600)A	AC {0}}(0,11)A (oqish oqimlarini cheklash)
Chiqish	Nominal qiymat	DC4-20mA yoki 0-20mA, 0-5V, 0-10V va boshqalar
	Yuk qarshiligi	Current output Less than or equal to 500Ω,Voltage output Greater than or equal to 1kΩ
Aniqlik klassi		0,5 foiz
Javob vaqti		350ms dan kam yoki unga teng
Harorat		Ishlash: -10 dan plyus 55 darajagacha Saqlash: -25 dan plyus 70 darajagacha
Harorat koeffitsienti		200ppm/darajadan kamroq yoki unga teng
O'rnatish		(Temir yo'l) DIN35, idishni vintlar bilan mahkamlang
Standartlar		GB/T 13850

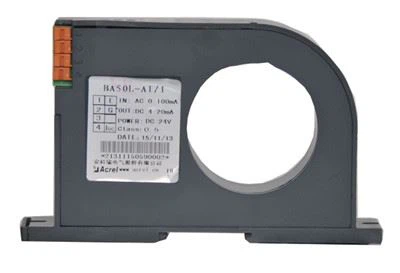

	BA50-AI/I ●Input: 0-1A Leakage Current ●Output: DC 4-20mA ●Measurement of Leakage Current ●Overload: 1.2 times of Rated Value
BA20-AI/V ●Application: Industrial automation ●Input: AC current measurement up to 200A ●Overload: 1.2 times of the rated value ●Output: DC 0-5V

●Higher accuracy ●Higher Level of Isolation ●Higher Safety Level ●Lower Consumption

Standart DIN35 mm relsni o'rnatish uchun mos joyni tanlang va BA sensorini relsga o'rnating;

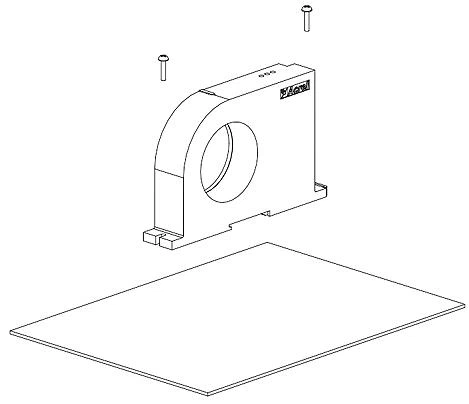

Shkafning pastki panelida o'rnatilgan sensorning sobit teshigining holatiga mos keladigan ikkita tishli teshikni ochish uchun mos joyni tanlang; Sensorni qo'ygandan so'ng, joylashishni aniqlash vintini o'rnating

1 —— plus Positive power supply (not reversed)

2 —— - Power EARTH

3 —— G（Current output negative, which can be shared with the power supply）

4 —— IDC(Current output positive),VDC(Voltage output positive)

Issiq teglar: 4-20ona joriy transduser
