AC qochqin oqimini o'zgartirgich

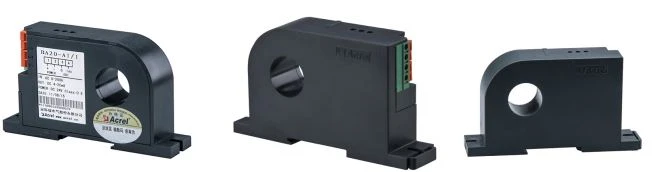

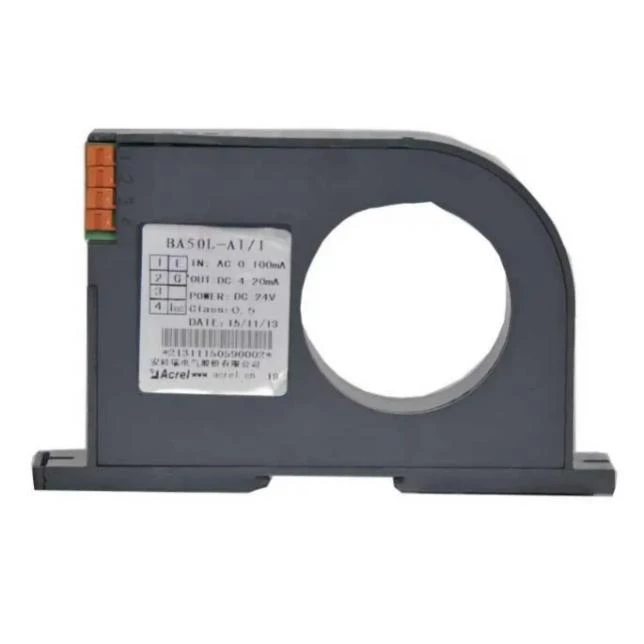

BA50L konvertor qoldiq oqim transformatori bo'lib, asosan elektr tizimining qochqin oqimini aniqlaydi. Oqish natijasida kelib chiqadigan yong'inlar va boshqa baxtsiz hodisalarning oldini olish uchun istalgan vaqtda elektr zanjirlari va jihozlarining holatini tushunishi mumkin.

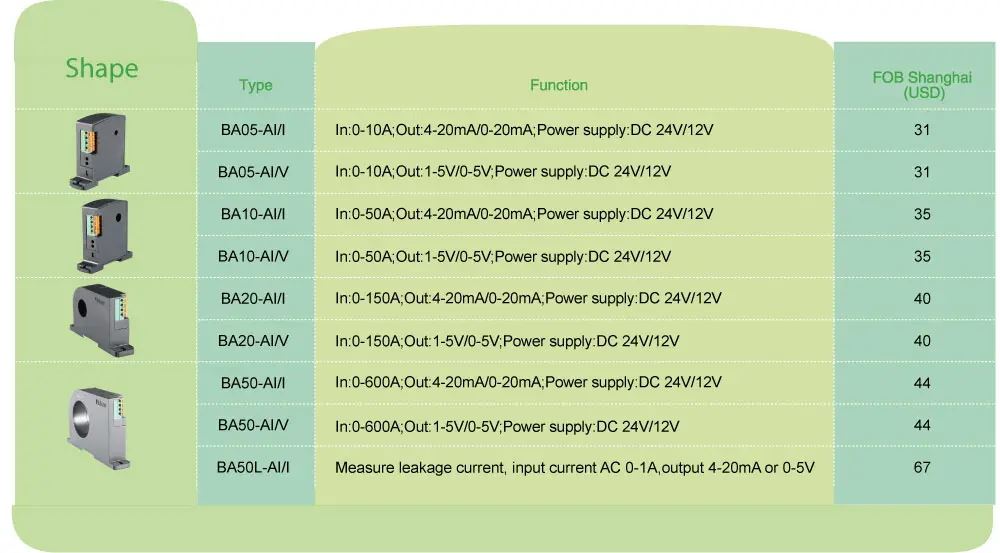

		BA05-AI/I(V)	BA10-AI/I(V)	BA20-AI/I(V)	BA50-AI/I(V)	BA50L-AI/I(V)
Yordamchi quvvat	DC 12V DC 24V	DC 12V DC 24V	DC 12V DC 24V	DC 12V DC 24V	DC 12V DC 24V	DC 12V DC 24V
Iste'mol		1 Vt dan kam yoki unga teng	1 Vt dan kam yoki unga teng	1 Vt dan kam yoki unga teng	1 Vt dan kam yoki unga teng	1 Vt dan kam yoki unga teng

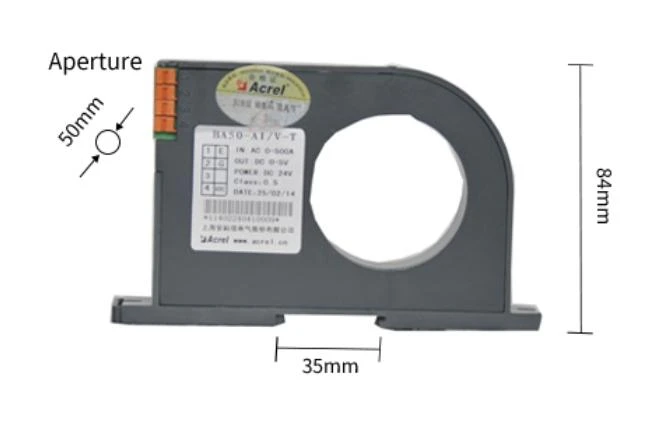

Teshik-oʻlchami		φ5mm	φ10mm	φ20mm	φ50mm	φ50mm
Kiritish	Hozirgi	AC {0}}(0,510)A	AC 0(850)A	AC 0(40200)A	AC 0(60600)A	AC {0}}(0,11)A (oqish oqimlarini cheklash)
Chiqish	Nominal qiymat	DC4-20mA yoki 0-20mA, 0-5V, 0-10V va boshqalar
	Yuk qarshiligi	Current output Less than or equal to 500Ω,Voltage output Greater than or equal to 1kΩ
Aniqlik klassi		0,5 foiz
Javob vaqti		350ms dan kam yoki unga teng
Harorat		Ishlash: -10 dan plyus 55 darajagacha Saqlash: -25 dan plyus 70 darajagacha
Harorat koeffitsienti		200ppm/darajadan kamroq yoki unga teng
O'rnatish		(Temir yo'l) DIN35, idishni vintlar bilan mahkamlang
Standartlar		GB/T 13850

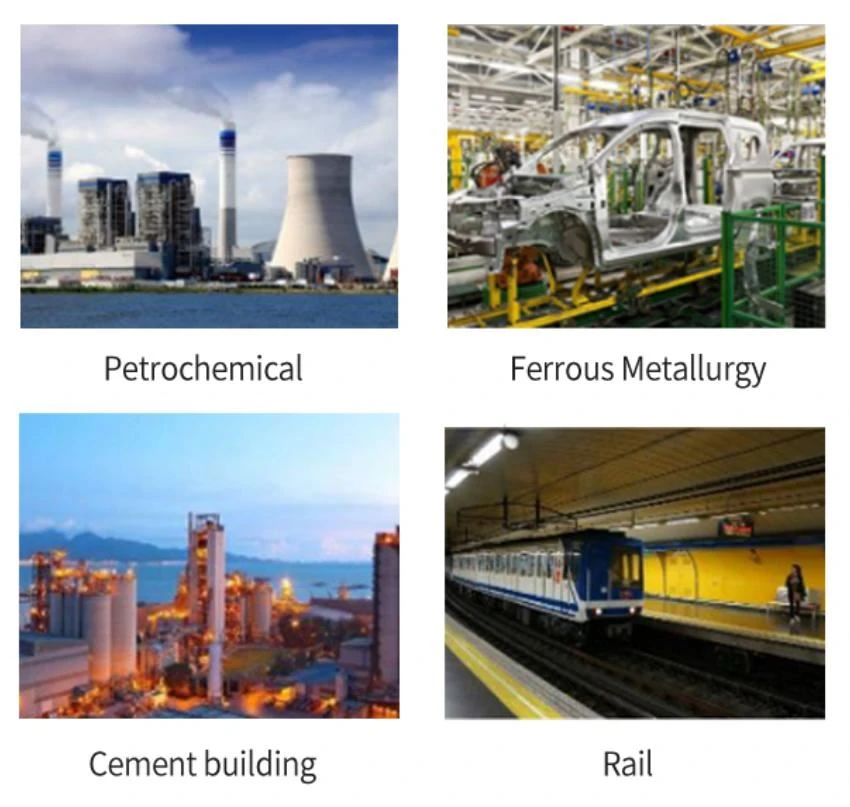

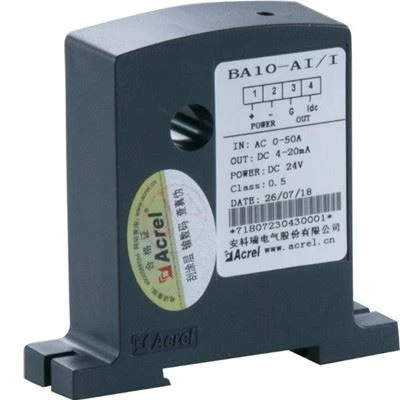

	BA10-AI/I ●Application: Industrial automation ●Input: AC current measurement up to 50A ●Overload: 1.2 times of the rated value ●Output: DC 4-20mA
BA20-AI/V ●Application: Industrial automation ●Input: AC current measurement up to 200A ●Overload: 1.2 times of the rated value ●Output: DC 0-5V

BA seriyali mahsulotlar elektr tarmog'idagi o'zgaruvchan tokni real vaqtda-o'lchash uchun elektromagnit induksiya printsipini qo'llaydi va uni ajratib olish va standart shahar signal chiqishiga aylantirish uchun doimiy oqim va chiziqli kompensatsiya texnologiyasidan foydalanadi.

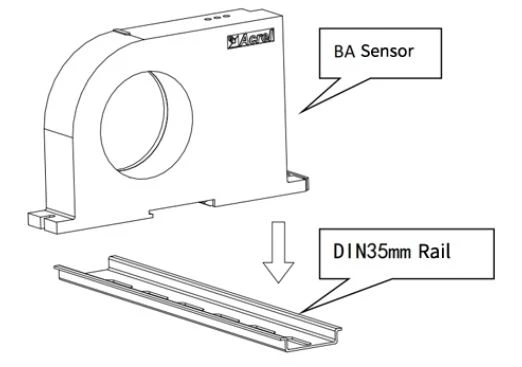

Standart DIN35 mm relsni o'rnatish uchun mos joyni tanlang va BA sensorini relsga o'rnating;

Shkafning pastki panelida o'rnatilgan sensorning sobit teshigining holatiga mos keladigan ikkita tishli teshikni ochish uchun mos joyni tanlang; Sensorni qo'ygandan so'ng, joylashishni aniqlash vintini o'rnating

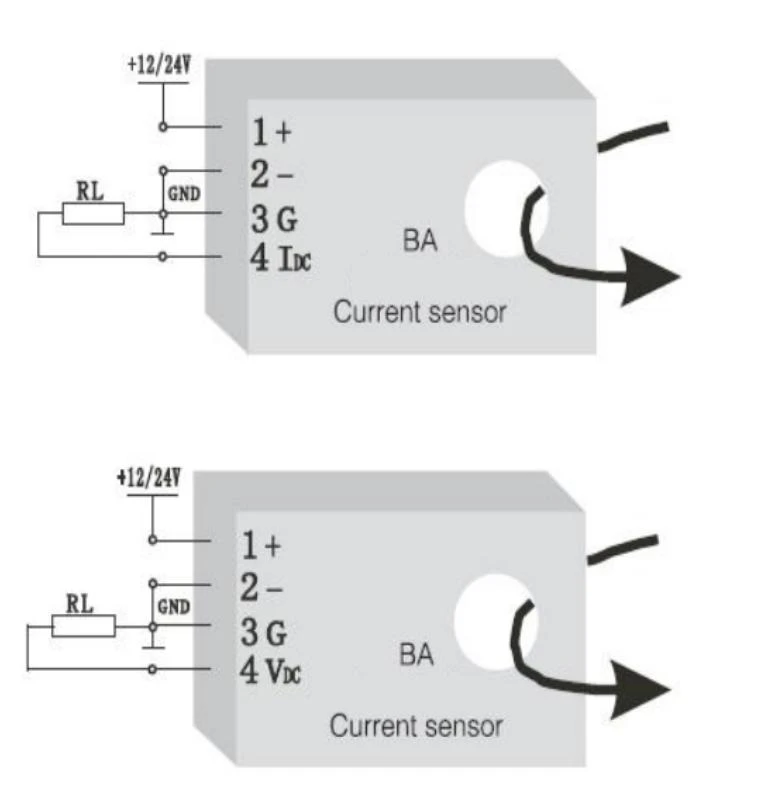

1 —— plus Positive power supply (not reversed)

2 —— - Power EARTH

3 —— G（Current output negative, which can be shared with the power supply）

4 —— IDC(Current output positive),VDC(Voltage output positive)
