Umumiy koʻrinish
Acrel BD Series elektr uzatgichlari elektr parametrlarini ajrata oladigan va uzata oladigan qurilmadir, bu BD - 3P seriyali quvvat chastotasi o'zgartirgichi faol quvvatni, reaktiv quvvatni o'lchashi mumkin; Nominal qiymatdan ortiqcha yuklanishning 1,2 barobari; DC 0 - 5V/0 - 10V/0 - 20mA/4 - 20mA hammasi analog chiqish sifatida tanlanishi mumkin.
Funktsiya
BD - AI BD - AV | BD - F | BD - PF | BD - 3I3 BD - 3(4)V3 | BD - 3(4)P BD - 3(4)Q | BD - 3(4)E | ||
Faza&va simlarni ulash | 1P2W | √ | ○ | ○ | ○ | ○ | ○ |
3P3W | — | — | ○ | ○ | ○ | ○ | |
3P4W | — | — | ○ | ○ | ○ | ○ | |
Kiritish | Kuchlanishi | To'g'ridan-to'g'ri L - L | 480V AC gacha | ||||
To'g'ridan-to'g'ri L - N | 276V AC gacha | ||||||
Tashqi PT bilan | ○ | ○ | ○ | ○ | ○ | ||
Hozirgi | To'g'ridan-to'g'ri | 5A gacha AC | |||||
Tashqi KT bilan | ○ | ○ | ○ | ○ | ○ | ||
Chiqish | Oddiy qiymat | DC: 4 - 20mA, 0 - 20mA, 0 - 5V, 0 - 10V, va hokazo | |||||
Yuk qarshiligi | Current output≤600Ω Voltage output≥1000Ω | ||||||
Ripple tarkibi | & lt;0.5% Eng yuqori qiymat | ||||||
O'lchash | Kuchlanishi | □ | — | — | □ | ||
Hozirgi |
| — | — | □ | □ | □ | |
Faol/reaktiv quvvat | — | — | — | — | □ | □ | |
Ko'rinadigan kuch | — | — |
| — | □ | □ | |
Quvvat omili | — | — | R | — | □ | ||
Chastotasi |
| □ | □ | ||||
Energiyani o'lchash | ±KWh | — | — | — | — | — | ○ |
Aniqlik klassi | 0.5% | ||||||
Aloqa | Interfeys: RS485 Protokol: Modbus - RTU |
|
| — |
|
|
|
Analog chiqish | DC 0 - 5V,0 - 10V,0 - 20mA,4 - 20mA | ||||||
Puls chiqishi | |||||||
Olchamlari (mm) | Uy-joy (WXHXD) | 138X76X24 | 119X75X55 | 119X75X55 | 112X110X75 | 112X110X75 | 112X10X75 |
Yordamchi quvvat | 85 - 265V AC/DC,DC24V,DC48V | ||||||
Harorat | Operatsiya | - 10 dan 55 darajagacha | |||||
Saqlash | - 25 dan 70 darajagacha | ||||||
Namlik | 95% gacha, kondensatsiya yo'q | ||||||
O'rnatish | (Temir yo'l) DIN35 kabinaga vintlar bilan mahkamlang | ||||||
Standartlar | GB/T 13850 | ||||||
'○': Yes '—' No '
' Majburiy emas
 | BD - 3I3 seriyali uchta - fazali oqim o'zgartirgich ● Application: Industrial automation ● Input: AC current measurement up to 200A ● Overload: 1.2 times of the rated value ● Analog Output DC 0 - 5V/0 - 10V/0 - 20mA/4 - 20mA |
BD - AI seriyali bir fazali oqim o'tkazgich ● AC current ● Overload: 1.2 times of the rated value ● Analog Output DC 0 - 5V/0 - 10V/0 - 20mA/4 - 20mA |  |

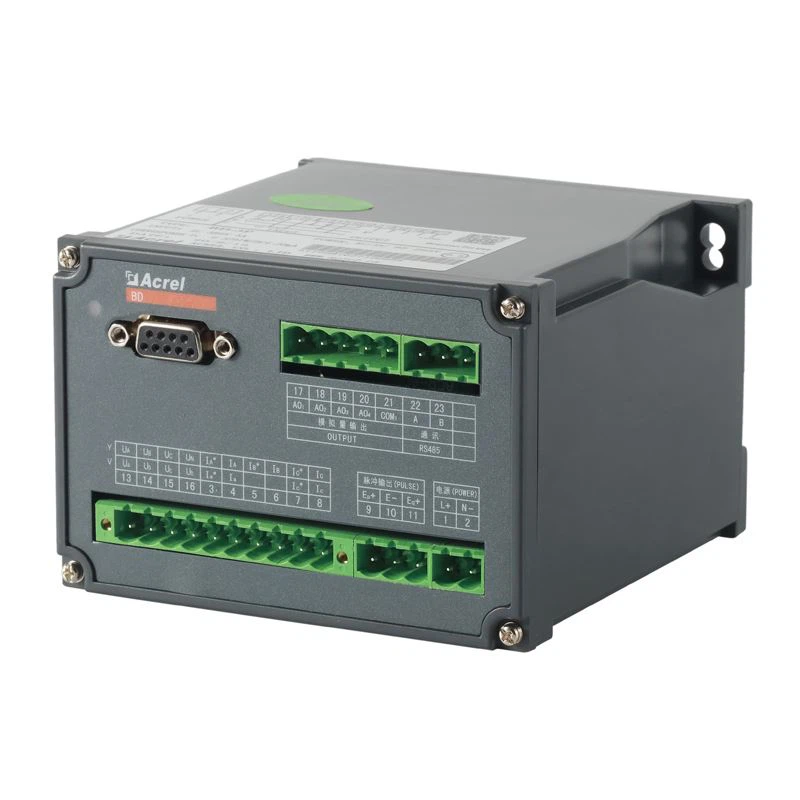

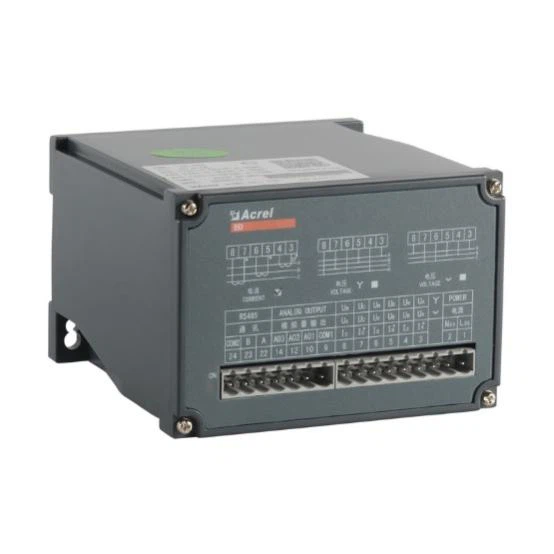

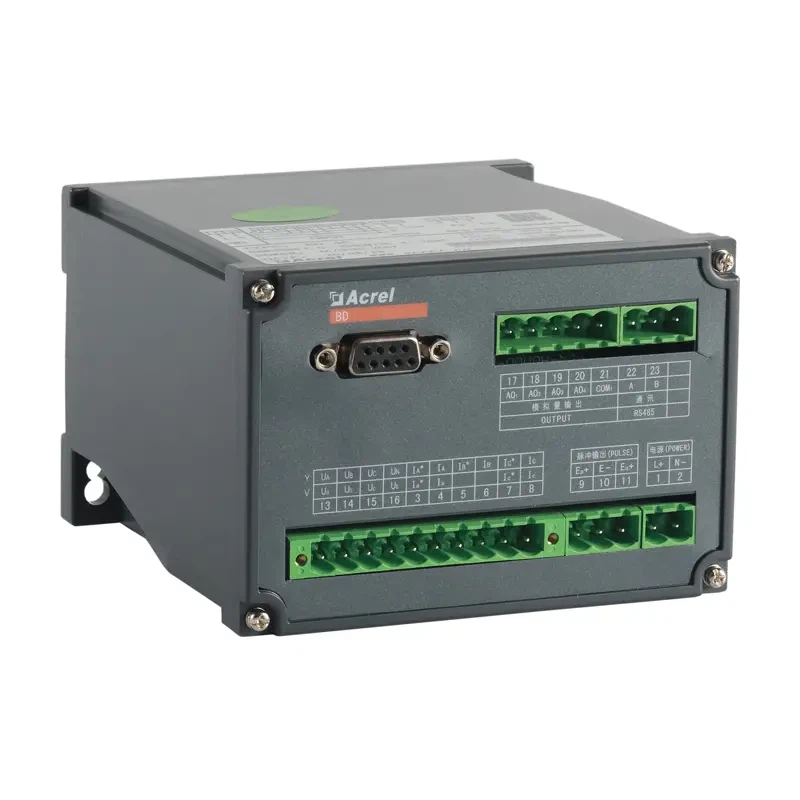

Tashqi ko'rinish
Hajmi
(L*W*H: 128*110*75.4)
O'rnatish
