Acrel Pekin qishki Olimpiya o'yinlari uchun echimlarni taqdim etadi
1. Umumiy ko'rinish

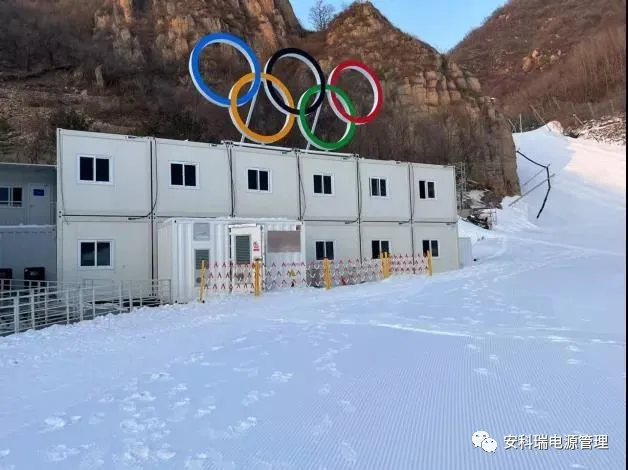

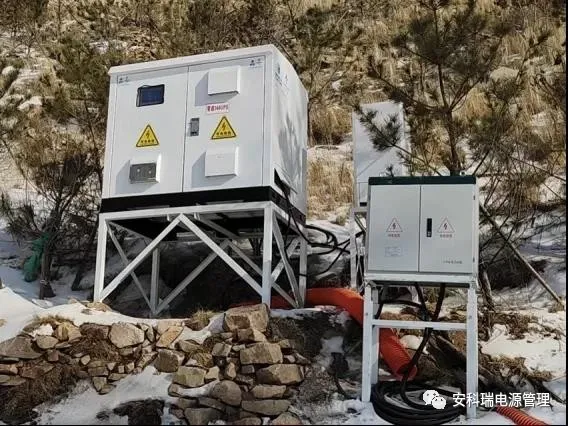

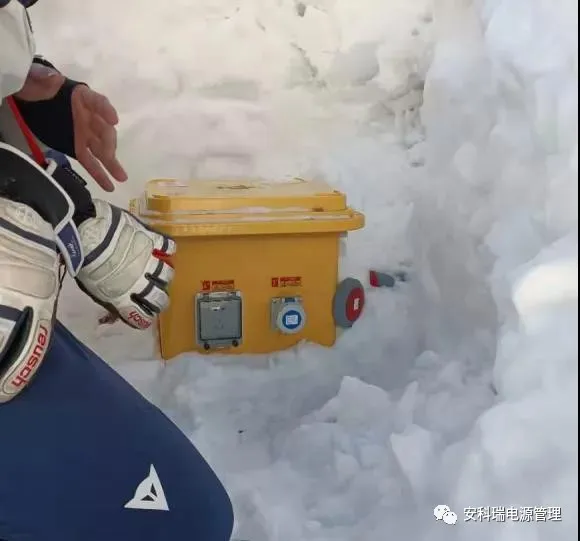

The Beijing Winter Olympics will be grandly opened on February 4, 2022. This is a major landmark event at an important historical node in my country. It is an important opportunity to show the country's image, develop the country and inspire the national spirit. As the grand event draws nearer, as an important basic condition for hosting the Olympic Games, the construction of the venues for the Beijing Winter Olympics has always attracted much attention, and the stable and reliable operation of the power supply and distribution system of the venues is the top priority.The outdoor environment of the site is relatively harsh, and the temperature is as low as minus 20 degree . In order to ensure reliable power supply, each headquarters conducts power supply support capability tests according to the power supply duties, and tests the power supply tasks, main power supply and self-provided emergency power supply of each venue. Supply situation, operation of important loads, relay protection action, emergency response plan, spare parts, logistics support, etc. Acrel Electric provides solutions for intelligent monitoring of distribution boxes and environmental regulation in boxes for the Winter Olympics, and conducts online real-time management of power supply and power protection equipment such as cable branch boxes, ATS power boxes, and UPS power boxes. The edge computing gateway collects the electrical data, temperature and humidity, condensation, contact temperature and other data inside the indoor and outdoor power distribution cabinets and automatically adjusts them to achieve good operating conditions, realizing intelligent monitoring from the UPS to the low-voltage switch at the end of the venue for the Winter Olympics , to provide emergency support in a timely manner and improve the reliability of power supply.

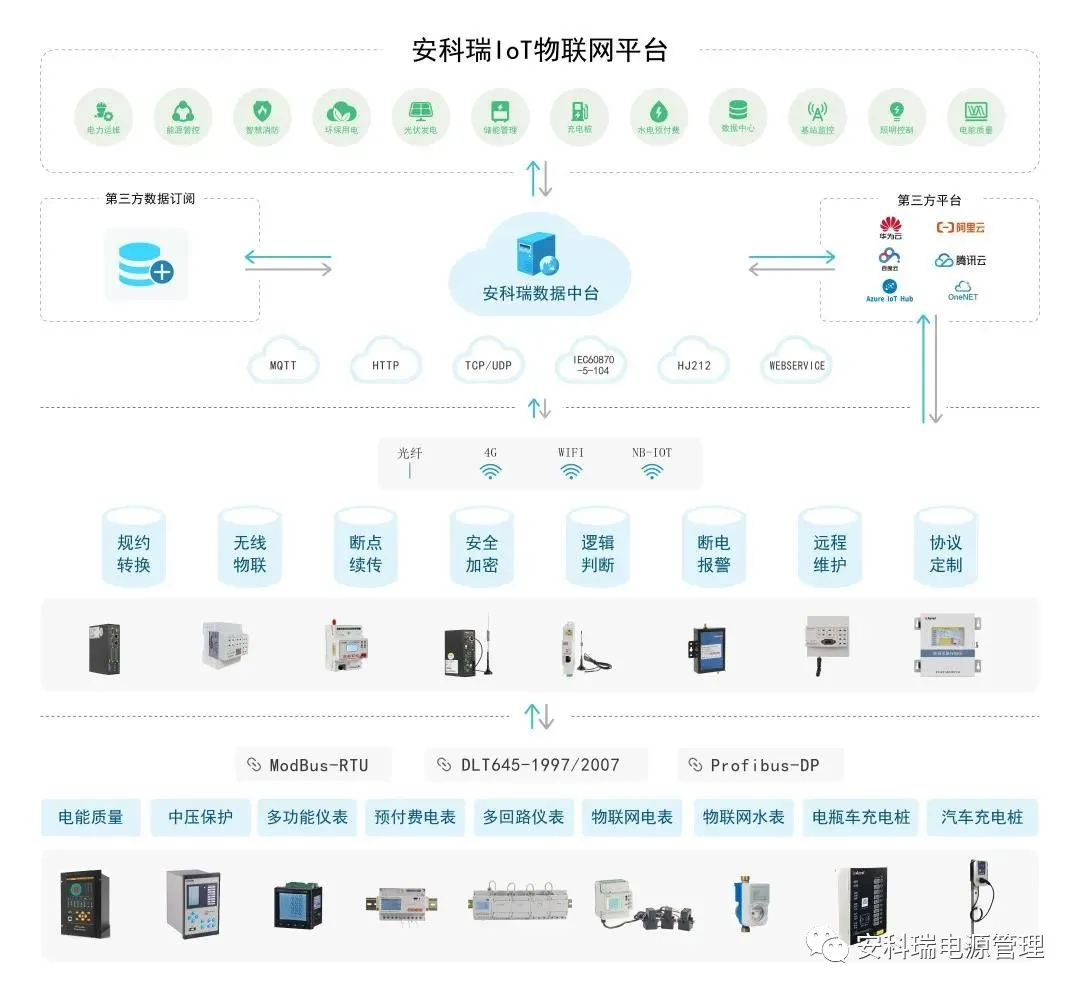

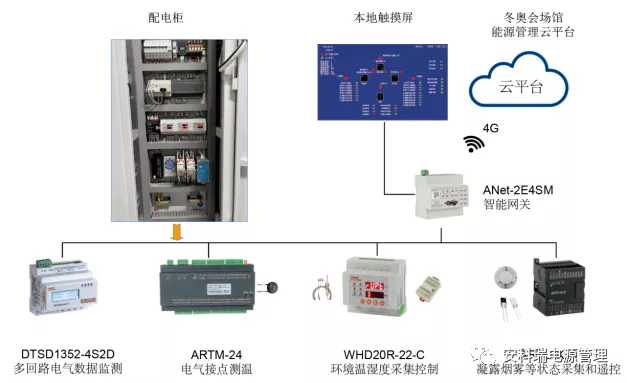

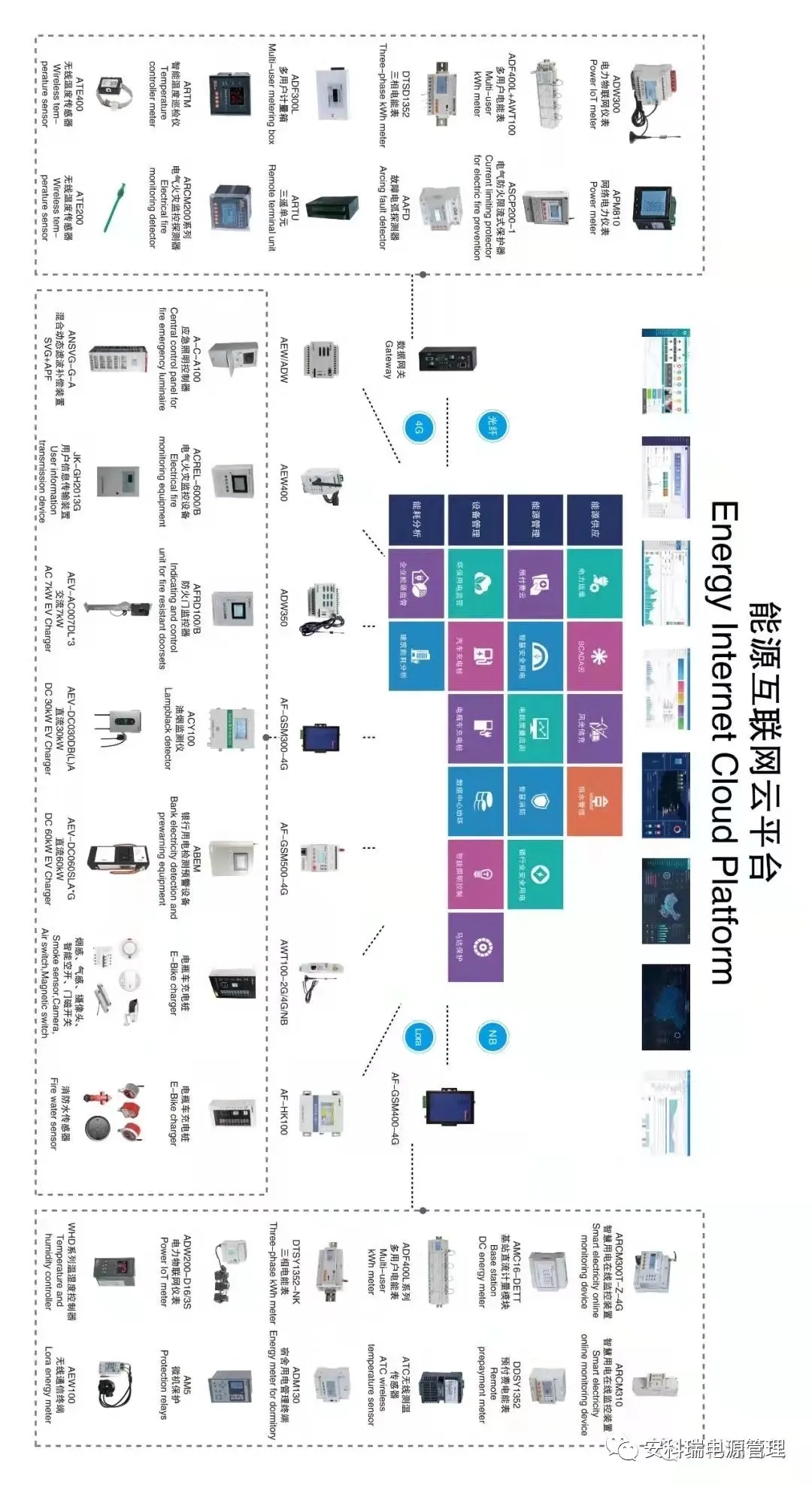

Tizimni uchta qatlamga bo'lish mumkin: maydon qurilmasi qatlami, tarmoq aloqasi qatlami va platformani boshqarish qatlami.Field device layer: including DTSD1352-4S2D-MK, DTSD1352-4S2D, ARTM-24, WHD46-33-C,WHD20R-22-C, ARTU-KJ8 and other signal acquisition equipment, used to collect electrical operation in indoor and outdoor distribution boxes Parameters, electrical contact temperature, ambient temperature and humidity in the box, condensation, smoke and other data, and can be automatically controlled by the built-in logic of the ANet-2E4SM intelligent gateway to adjust the temperature and humidity to maintain a good operating environment inside the distribution box.Network communication layer: including ANet-2E4SM intelligent gateway. The gateway actively collects the data of the field device layer equipment, and can perform protocol conversion, data storage, and upload the data to the local touch screen and the designated server port through the 4G network. Temperature and humidity control equipment. Platformani boshqarish: Qishki Olimpiya o'yinlarida energiyani boshqarish uchun katta platforma.Sayt asosan qattiq sovuq muhitda tarqatish qutilarining barqaror va normal ishlashini ta'minlash uchun uchta turdagi tarqatish qutilarini, jumladan, kabel filiallari qutilarini, ATS quvvat manbai avtomatik almashtirish qutilarini va UPS quvvat manbai qutilarini kuzatib boradi va nazorat qiladi. Masofaviy monitoringga kiritilgan ushbu uch turdagi 500 dan ortiq tarqatish qutilari mavjud va turli tarqatish qutilari uchun echimlar ham bir oz farq qiladi.3.1 Qurilmalar inventarini sozlash3.2 Funktsiyani amalga oshirishFilial qutisi sxemasining elektr parametrlarini kuzatib boring.Qutidagi harorat juda past bo'lsa, signal signalini bosing va isitishni boshlang.Kabel ulagichi harorat signali ustidan.Isitish va ventilyatsiya tutun signalizatsiyasini ishga tushirish uchun kondensatsiya aniqlandi. Soket quvvat manbai holatini aniqlash. APN yo'nalishi tarmog'i orqali Qishki Olimpiya o'yinlarining energiya boshqaruvi platformasiga yuklash uchun IEC60870-5-104 protokolini qabul qiling.3.3 Qurilmalar inventarini sozlash

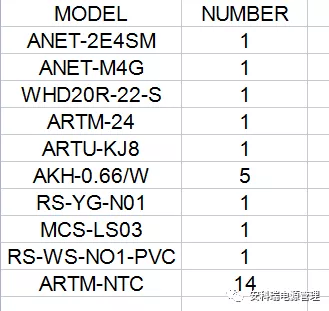

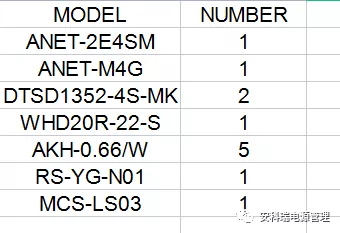

3.4 Funktsiyani amalga oshirish
Qutidagi harorat juda past bo'lsa, signal signalini bosing va isitish kabeli ulagichi haroratini yig'ishni boshlang, harorat signali yuqori. Kondensatsiya signalizatsiyasi aniqlandi va isitish ventilyatsiyasi faollashtirildi Tutun va harorat va namlik signallari. IEC60870-5-104 protokolini qabul qiling APN yo'nalishi tarmog'i orqali qishki Olimpiya o'yinlarining energiya boshqaruv platformasiga yuklash3.5 Qurilmalar inventarini sozlash
3.6 Funktsiyani amalga oshirishQutidagi harorat juda past bo'lsa, signal signalini bosing va isitishni ishga tushiring Ichki haddan tashqari harorat signalizatsiyasi Kondensatsiya isitish Batareya to'plami g'ayritabiiy signal Inverter ishlamay qolishi signali. APN orqali Qishki Olimpiya maydonchasi energiya boshqaruvi platformasiga yuklash uchun IEC60870-5-104 protokolini qabul qiling. yo'nalishli tarmoqThe opening of the Winter Olympics is imminent. In order to ensure the normal operation of the on-site power distribution system, Acrel arranged for engineers to maintain on-site and provide technical support for winning the tough battle of power protection for the 2022 Beijing Winter Olympics.Acrel has been deeply involved in intelligent power distribution for many years, and currently more than 14,000 solutions are running all over the country. The company has accumulated a lot of experience from terminal sensors, edge computing gateways to cloud platforms, and provides data support and solutions for weak links in power distribution systems in various environments to improve power supply reliability. Acrel will help this time with practical actions. The Winter Olympics were a complete success.
